Medtrue
Mt05004201
Steam Sterilizer
0.22MPa
12kw/380V 50Hz
280L

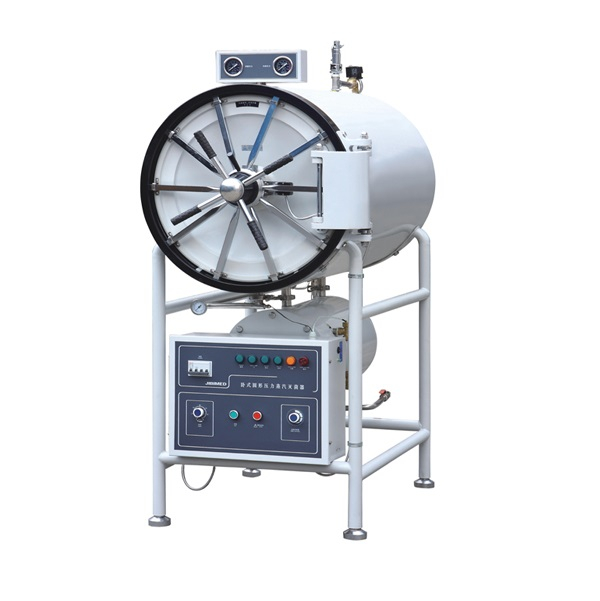

CE/ISO Approved Horizontal Cylindrical Pressure Steam Sterilizer(MT05004201)
Characteristics:
1.The steam can't go through to chamber when the door haven't close, and the pilot off to inform.You can processing dry operate.
2.When the pressure inner over 0.027Mpa,the door be lock and not be open.
3.If you not choose the sterile time and start the machine,buzzer sound.
4.If you mistake open the door in the course of start, the jacket valve auto off and open the chamber valve.
5.Lack water the pilot on, heating and sterile pilot off, the buzzer sound and auto release steam.
6.Overload and leakage protection,when leakage or over current occur,it auto off the power.
7.Temperature controller not work and the inner pressure over 0.165Mpa,the safety valve auto start open.
| MT05004201 | MT05004202 | MT05004203 | |
| Valid volume | 280L | 200L | 150L |
| Max. working pressure | 0.22Mpa | 0.22Mpa | 0.22Mpa |
| Max.working temperature | 134ºC | 134ºC | 134ºC |
| Adjustment of temperature | 40~134ºC | 40~134ºC | 40~134ºC |
| Heat average | ≤±2ºC | ≤±2ºC | ≤±2ºC |
| Power | 12kw/380V 50Hz | 9kw/380v 50Hz | 9kw/380v 50Hz |
| Material of sterilizer | stainless steel 0Cr18Ni9 | stainless steel 0Cr18Ni9 | stainless steel 0Cr18Ni9 |
| Transport dimension | 1680*920*2100(mm) | 1560*820*1850(mm) | 1550*750*1850(mm) |
CE/ISO Approved Horizontal Cylindrical Pressure Steam Sterilizer(MT05004201)
Characteristics:
1.The steam can't go through to chamber when the door haven't close, and the pilot off to inform.You can processing dry operate.
2.When the pressure inner over 0.027Mpa,the door be lock and not be open.
3.If you not choose the sterile time and start the machine,buzzer sound.
4.If you mistake open the door in the course of start, the jacket valve auto off and open the chamber valve.
5.Lack water the pilot on, heating and sterile pilot off, the buzzer sound and auto release steam.
6.Overload and leakage protection,when leakage or over current occur,it auto off the power.
7.Temperature controller not work and the inner pressure over 0.165Mpa,the safety valve auto start open.
| MT05004201 | MT05004202 | MT05004203 | |
| Valid volume | 280L | 200L | 150L |
| Max. working pressure | 0.22Mpa | 0.22Mpa | 0.22Mpa |
| Max.working temperature | 134ºC | 134ºC | 134ºC |
| Adjustment of temperature | 40~134ºC | 40~134ºC | 40~134ºC |
| Heat average | ≤±2ºC | ≤±2ºC | ≤±2ºC |
| Power | 12kw/380V 50Hz | 9kw/380v 50Hz | 9kw/380v 50Hz |
| Material of sterilizer | stainless steel 0Cr18Ni9 | stainless steel 0Cr18Ni9 | stainless steel 0Cr18Ni9 |
| Transport dimension | 1680*920*2100(mm) | 1560*820*1850(mm) | 1550*750*1850(mm) |
