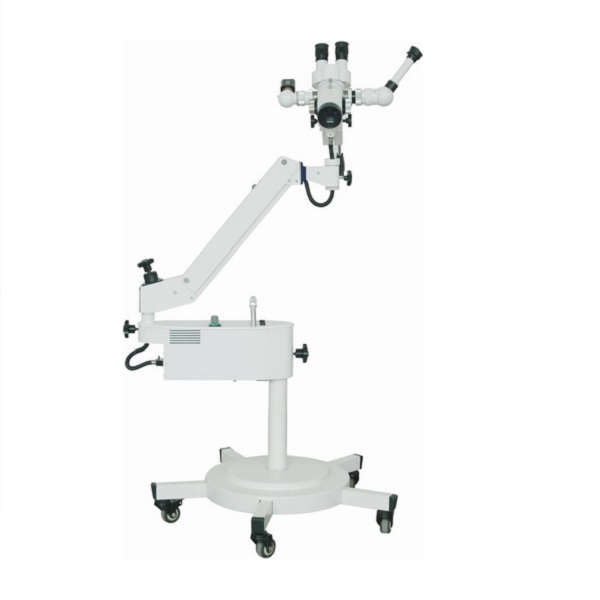

CE/ISO Approved Medical Digital Video Gynecology Colposcope for Vagina (MT02006301)
Specifications:
Observation angle: 45°tilted
Magnification of eyepiece: 16X
Interpupillary distance: 50mm-80mm
Diopter: ±5D
Focal length of objective: F=300mm
Magnification changer: 5-step: 0.4X, 0.66X, 1X, 1.5X, 2.5X
Total Magnification: 2.7X, 4.4X, 6.6X, 10X, 16.6X
Linear field: 90mm, 55mm, 37mm, 24mm, 15mm
Fine focusing distance: 20mm
Balance arm: Counterweight adjustable and can be locked
Illumination: Coaxial illumination with cold light source fiber-optic cable, 21V150W halogen lamp, brightness adjustable
Illumination: >15000lux
Filter: Build-in green & blue filter
Stand: Short column fitted on the five-star base
With beamsplitter, and TV adapter, C-mount 1/3" CCD camera attachable
Power supply: AC110V60HZ/AC220V50HZ
Optional accessories: Demonstrator, Camera, Photo adapter, Monitor H1766, Objective (F=23mm & F=280mm)
