Ultrasonic a/B Scan for Ophthalmology
Medtrue

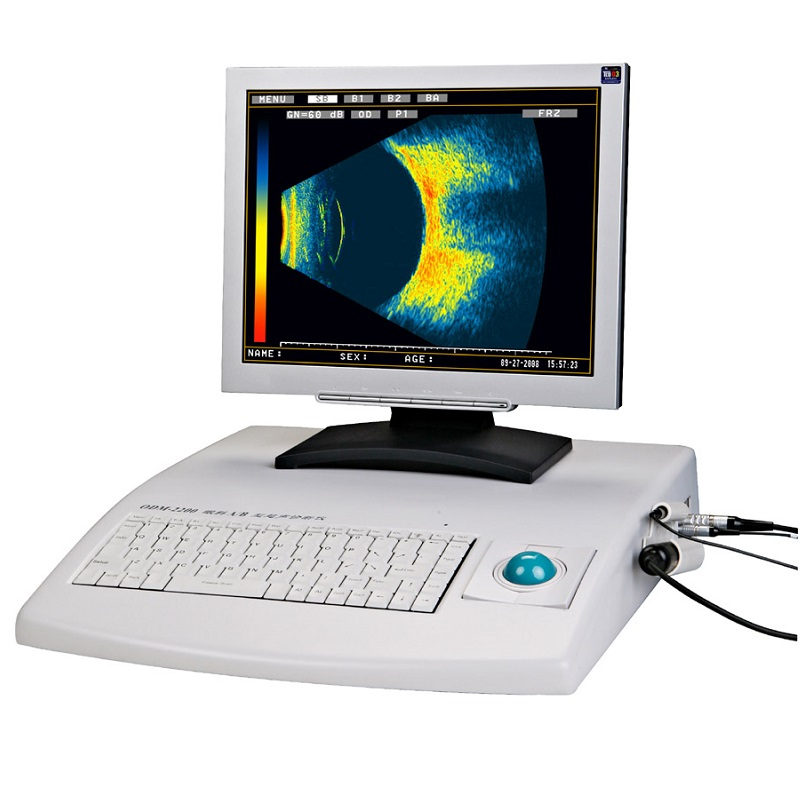

CE/ISO Approved Medical Ophthalmic Ultrasound Ultrasonic A/B Scan for Ophthalmology(MT03081004)
Features:
8 Color Codes
High Resolution Images
Operating Mode: B, B+A, B+B, A
8 Images Memory
6 Steps Zoom from 34-60mm
Variable Displaying Area
5 Sections Adjustable TGC
Cineloop for 5.6sec
Accurate Axial Measurement under B-mode (SMI-5)
Manual Correction of Axial Measurement under A-mode (SMI-5)
Multi-groups of Calipers for Distance Measurement
Various Area Measurement
Measuring Mode: Contact and Immersion
Save up to 50 Groups of IOL Calculation Results
8 Groups Average with Standard Deviation (S.D.)
Large Screen LCD Monitor
B-Probe Protection: Automatic Stop after 10 minutes of
Continuous Scanning
Trackball for Easy Measurement and Operation
Real-time Clock
Optional Image Output: Video Printer or Workstation
Specifications:
B-Scan:
Probe Frequency: 10MHz
Scanning Angle: 53°
Resolution: axial≤0.2mm, lateral≤ 0.4mm
Zoom: 34mm ~ 60mm, 6 steps selectable
TGC: -30dB ~ 0dB dynamic, 6 points manually adjustable
Dynamic Replay for 5.6 sec, 56 images displayed continually or separately
Variable Delay Depth: 0~15 mm
Multi-groups of Electronic Calipers for Distance Measurement
Various Area Measurement
Post Processing: 4 groups of curves (Liner, Logarithmic,
Exponential, S-curve)
Total Gain: ≥98dB adjustable
Gray Scale: 256 levels
A-Scan:
Probe: 10MHz with Fixation Red Light
Resolution: 0.01mm
Biometry Accuracy: ≤±0.06mm
Gain: ≥98dB with an adjustable range of 0~59dB
Measuring Range: 15~39mm
Measuring Parameters: Anterior Chamber Depth, Lens
Thickness, Vitreous Length and Axial Length.
5 Different Measuring Modes: Automatic (for Normal, Dense Cataract, Aphakic and Pseudophakic); Manual
8 Groups' average with Standard Deviation (S.D.)
IOL Power Calculation: SRK/T, SRK-II, BINKHOST-II,
HOLLADAY, HOFFER-Q and HAIGIS
Save up to 50 groups of IOL calculation results and 4 groups of IOL constants
Others:
AC 100~240V, 50/60Hz
Weight: 6Kg without LCD
Dimension: 460 x 420 x 80 mm
