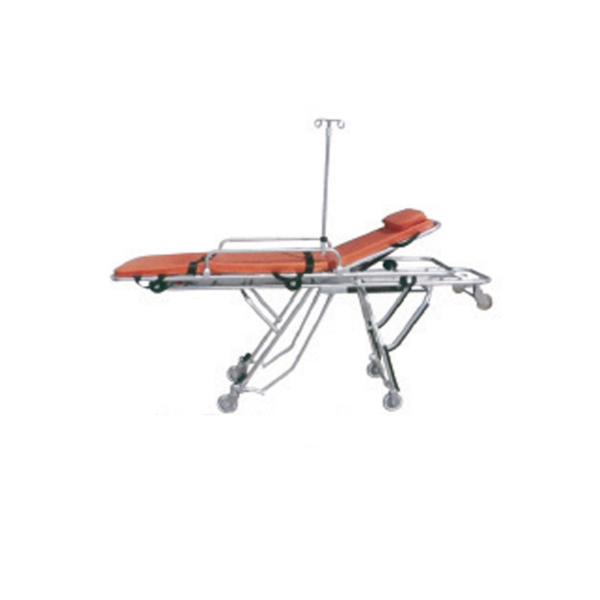

CE/ISO Approved Medical Rescue Operation Varied Positions Auto-Boarding Mutifunctional Automatic Stretcher (MT02020001-01)
MT02020001-01multifunctional automatic stretcher with varied positions, used for first aid, is a unique design. It can easily adjust to various positions for emergency treatment under any complicated situations, especially compatible with ambulance environment.

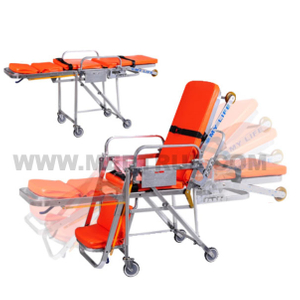

When bent forward, the back of the stretcher is supported by fixed pneumatic springs with strapless controlling up to 60 degrees angle. Equipped with front and back fixation support design, the stretcher can be locked in place into the ambulance at a desired position.
Technical Parameter:
Product size:
1980x530x980max(mm)
1980x530x340min(mm)
Net weight : 40kg
Gross weight :50kg
Loading bearing :≤159kg
Maximum angle of leaning forward:11 degrees
Maximum angle of leaning backforward:25 degrees
The height scope of touching down(6 grades):98cm 94cm 87cm / 77cm 60cm 34cm
Dimension of the packing box 2000x600x350(mm)
