CE
Micro-Infusion Syringe Pump
Medtrue
Mt05091003
Ce,ISO13485
Jiangsu China (Mainland)

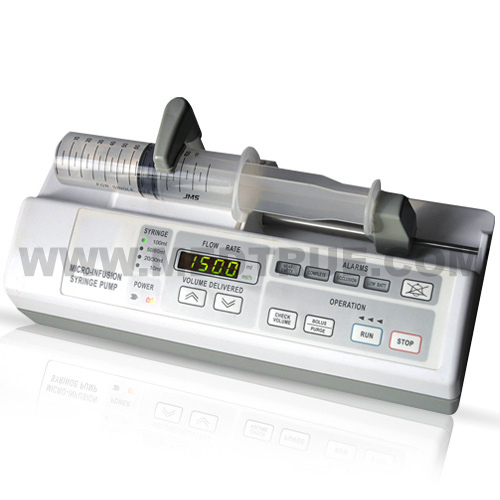

CE/ISO Approved Medical Micro-Infusion Syringe Pump (MT05091003)
Main features:
Wide flow rate range from 0.1 ml/h to 1500 ml/h
Accepts syringe sizes from 10 ml - 100 ml
Automatic accuracy calibration
Adjustable occlusion pressure
| Infusion rate range | 10 ml syringe -------------------> 0.1-300 ml/h | 50/60 ml syringe -------------------> 0.1-1200 ml/h |
| 20/30 ml syringe ---------------> 0.1-500 ml/h | 100 ml syringe ----------------------> 0.1-1500 ml/h | |
| Bolus / Purge rate | 10 ml syringe -------------------> 240 ml/h | 50/60 ml syringe --------------------> 960 ml/h |
| 20/30 ml syringe ---------------> 400 ml/h | 100 ml syringe -----------------------> 1200 ml/h | |
| Bolus volume | Programmable from 1 to 10 ml | |
| Flow rate increments | 0.1-99 ml/h at 0.1 ml/h increments | |
| 100-1500 ml/h at 1ml/h increments | ||
| Accuracy | ± 5% with syringe | |
| Occlusion pressure | 0.04 Mpa - 0.12 Mpa / 5.8 PSI - 17.4 PSI | |
| Alarm volume | High, Medium, Low | |
| Safety protection | Automatic keypad lock | |
| Audible & visual alarms | ||
| Alarms | NEAR EMPTY (syringe almost empty) | Syringe disengaged |
| COMPLETE (Infusion completed) | Mechanical error | |
| OCCLUSION | Power source change | |
| LOW BATT | ||
| Power supply | AC 100-240V 50/60 Hz; DC 12V | |
| Battery | Built-in rechargeable sealed | |
| Pump will operate 3 hours min. at 25 ml/h with fully charged battery | ||
| Net weight | 1.85 Kg / 4 lbs | |
| Dimensions | 335 (L) x 142 (W) x 120 (H) mm / 13" (L) x 51½, " (W) x 3 ½" (H) | |
