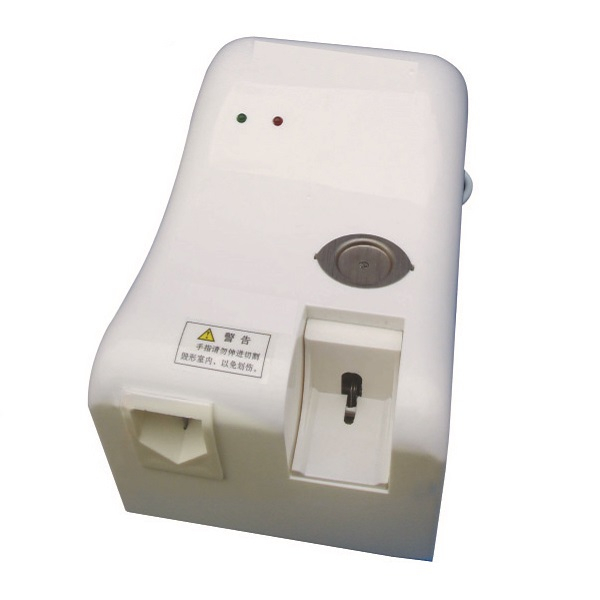

Syringe Needle Destroyer
Medtrue
Mt05120010
AC220V 50Hz
80va
2 Second/Time
Shape destroyed machine model MT05120010 is a new style product designed and developed by our company in accordance with the detailed requirement of "the Rules on the Supervision and Management of Medical Apparatus and Instruments". It is easily to use, also it is safe, reliable economic and good-looking.
Suitable scope:
Tubular plastic of syringe for single use, needle for single use, scalp needle for single use, transfusion system for single use, appartus tranfusion for single use.
Function of product:
It can melt metalic needle quickly and destroy syringe, needle cylinder and rubber plug at the same time. Meanwhile it can cut off tubular plastic primary.
Applicable Scope
Each medical ward, emergency room, injection room, infusion room.
iving up Health institution (station)
Convalescent hospital (station)
Clinic
Gdrugs place
Normal working conditions
(1) Height above sea level ≤1000m
(2) Power: AC(220+/-22)V, (50-60+/-1)HZ
(3) Environmental temperature (0-40)C
(4) Relative humidity ≤90%Safety
Meeting the normal safety requirements of section I of medical electrical equipment (GB9706.1-1995)
Technical conditions
(1)Consumption of power: 80VA.
(2)Capacity of treatment: 2 second/piece.
(3)Overall dimensions(mm): 250*160*130.
(4)Weight: 3.5kg
Operation steps
(1)Insert three-core plug and open the switch fo the power, then the red light is on and the machine is ready for work.
(2)Put the syringe on the orbit of shape destroyed machine, and push the syringe forward at the same speed. When the green light is on, the knife will turn round at a high speed automatically and incise the syringe, after that the knife will stop working.
(3)The pinhead melting hole can melt steel needles. Put the plastic stem of the needle to the hole and turn it from left to right. Continue when there is spark until it is totally destroyed. The draff will drop to the drawer box which is easy to clean.
(4)Put the transfusion pipe around the knife of pipe incised chember, the pipe will be chopped up when it is pulled slowly.
(5)Close the power after using and pull the plug out.
Attentions
(1)It is prohibited to open the cover of the machine with electricity to avoid any dangerous.
(2)Don't put your hand into the sliping orbit when the machine is connect with the electricity, to avoid the accident.
(3)Wipe the machine with dry cloth regularly to keep it clean.
(4)It is prohibited to put your hand to the pipe-incised chember.
(5)Don't put anything on the power wires and the machine. Pull the plug off when not using to avoid the dangerous caused by the loosening of the plug. (6)Keep the manual, three-certificate card, certificate of quality if needed in future.
