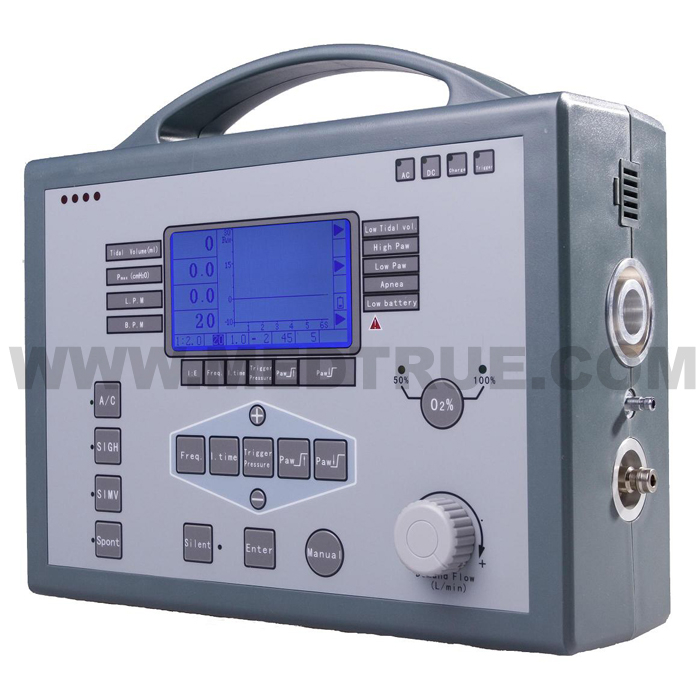

CE/ISO Approved Hot Sale Medical Portable Ventilator Machine(MT02018056)
Product Features:
1.Mutiple ventilation modes:A/C,A/C+SIGH,SIMV,SPONT,MANUAL
2.Electro-pneumatically controlled,time/pressure switched and microprocessor monitored
3.Manual button used during CPR
4.LCD display of ventilation mode,ventilation parameters,real time pressure waveform and warnings
5.Multiple alarms for low tidal volume,hilgh airway pressure,low airway pressure,apnea,low battery and system state.
6.LED state indicator for trigger,AC/DC and recharghing
7.Particular design of power supply makes the ventilator accommodate to various environments.
8.Compact,portable,lightweight,durable design.
| Ventilation Mode | A/C,A/C+SIGH,SIMV,SPONT,MANUAL |
| Tidal volume | 100ml~1000ml |
| Max.Minute ventilation volume | >=18L/min |
| Oxygen concentration | 60%,100% |
| System compliance | <4ml/100Pa |
| A/C ventilation frequency | 4bpm~8bpm |
| Inspiration time | 0.3s to 6s |
| I/E ratio | 5:1~1:5 |
| Max.working pressure | <=6kPa |
| Inspiration trigger pressure | 0cmH2O~-20cmH2O |
| Sigh(Deep breath) | Once per 100 breath cycles |
| SIMV ventilation frequency | 4bpm~15bpm |
| AC adapter | 110V~240V,50Hz/60Hz |
| Lithium battery | 14V,950mah |
| Dimensions | 230x200x70mm |
| Ventilator weight | 2.3kg |
