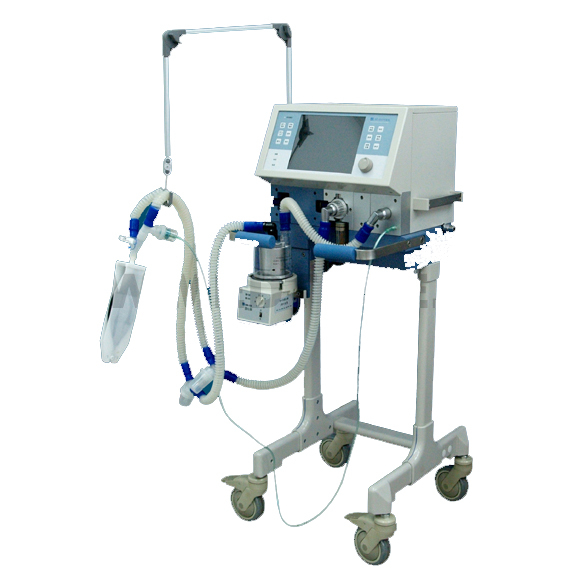

CE/ISO Approved Hot Sale Medical Versatile Ventilator (MT02003002)

CE/ISO Approved Hot Sale Medical Versatile Ventilator(MT02003002)

Features:
1.For patients of all ages
2.Pneumatic-driven and electronic-controlled.Wide ventilation modes including constant volume,constant pressure,pressure support etc.
3.Dual-microprocessor system,high reliability.
4.Monitonng of airway pressure and ventilation condition.
5.Instruction for easy operation.
6.Built-in alarm functions.

Specifications:
1.Respiratory frequency:IPPV:5~60bmp SIMV:1~12bpm
2.Inspiratory flow:Infant:4~24L/min(continuous)Adult:10~120L/min(inspiratory phase)
3.Inspiratory time:0.2~3s for IPPV(VC) and SIMV
4.Peak Pressure:1~9kPa
5.Jnhaled oxygen concentrateion:21~100%
6.PEEP/CAPA:0~1.5kPa
7.Pressure support:0~3.5kPa
8.Triqqer sensitivity:0~1.0kPa

Ventilation Modes:
1.Adult:IPPV(VC),IPPV(PC),SIM V,SIMV+PSV,CPAP PSV
2.Infant:IPPV(PC),IMV CPAP continuous flow,pressure limited,time cycle
3.Emergency:IPPV(PV)constant pressure
MV monitoring:0~40L/min
Upper alarm limit:5~40Umin
Lower alarm limit:0~20Umin
4.Airway pressure monitoring:Pmax Pmean Pplat  Peep
5.Ventilation monitoring:Resipratory Frequenev,Mintue Volume,Tidal Volume
6.Alarms:air supply deficiency.oxygen deficiency,hose detachment,high airway pressure,low airway pressure,shigh MV,low MV,apnea,power failure.
