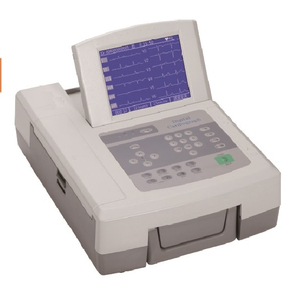

Medical 12-Channel Interpretive ECG Machine (MT01008024)

  • ECG Machine
  • CE, ISO13485
  • All The People
  • Medtrue
  • Digital ECG Machine

CE/ISO Approved Hot Sale Cheap Medical Twelve 12-Channel Interpretive ECG Machine (MT01008024)


6/(6+1)/12 channel printout format
5.7 inch 320x240 LCD to display ECG waveform, setting menu and operating status
Rhythm lead with R-R interval histogram and trend graph
Automatic measurement and interpretation of standard ECG parameters
Built in RS232/USB interface supporting data transmission to PC
128 exams in memory for recall and duplication
Able to enter patient into of ID, sex, age & weight
Two way for data communcation with HIS in format of XML, JPG, PDF, etc
Optional ECG viewer software for further data management
Paper size: 210mmx20m, roll type
LeadStandard 12 leadA/D Converter12 bit
Input CircuitIsolated:Protection aganinst pace making and defibrillationRecording paperRoll paper 50mmx20m(30m)
Input Impedance≥50MΩOperation ModeAUTO/MAN UAL
Input Circuit Current≤50nAPrinterThermal array printer
Calibrating Voltage1mA±3%

Skin Voltage Tolerance±300mVBaseline controlAutomatic position
Sensitivity5,10,20mm/mvRhythm LeadStandard 12 lead
FilterAC:50Hz(-2dB):emg:35~45Hz(-3dB)Lead ChangeAutomatic/Manual
Papler Speed25,50mm/s±3%External Singal10mm/mV±5%;single ended≥100KΩ
Time Constant≥3.2s(0,20%)ECG Output0.5V/m±5%;single ended≤100Ω
Noise Level≤15mVp-pSafety LevelClass1,Type CF
Frequency Response0.05~150Hz(-3dB)Power RequirementsAC:220V,50Hz/110V,60Hz
Sampling Rate1msWeight3.5kg

Standard Accessory
Patient Cable:1pc
Paper shaft:1pc
Limb Electrode:4pcs/set
Recording paper:1 roll
Chest Electrodes:6pcs/set
Fuse:3pcsPower Cable:1pc
Built in Battery:1pc
Ground Cable:1pc
Operation Manual:1 copy
