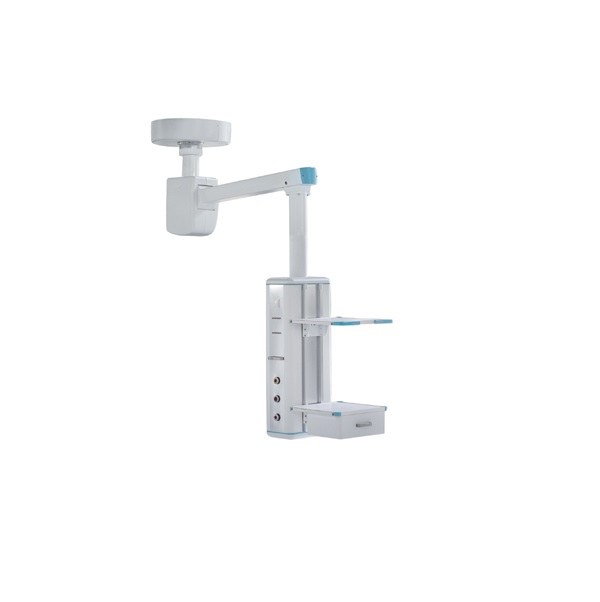

CE/ISO Approved Medical Electrical Surgical One Arm Pendant (MT05121021)

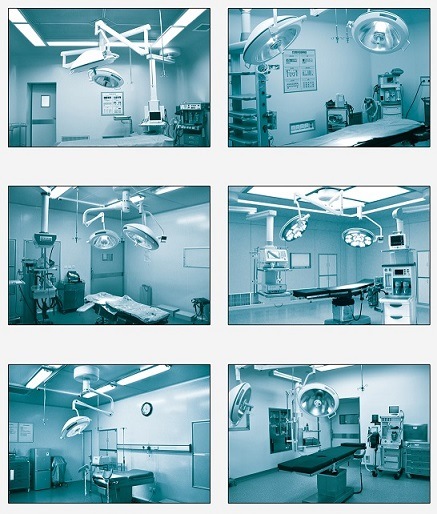

Electrical surgical pendant is a new and practical equipment used in modern clean operation rooms and general operation rooms.
Features:
1.The control canbinet of the tower crane adopt the imported high-strength aluminum alloy of patent technology for the one-off extrusion molding,and the surface undergoes the primary oxidation treatment,
2.Aluminum molding tray with non-slip texture.
3.Mechanical friction damping brake.
4.The imported electrical machine is adpoted,and the rising and rotation function of the electric horizontal cantilever can accurately position without excursion.
5.The gas pipeline,power supply and computer communication line are separately arranged without interference.
6.The imported Greman standard gas terminal(over 20,000 of inserting and pulling out) is adpoted.
Basic Configuration:
One discharge device(German style) for compressed air,oxygen,nitrous oxide,suction gas and anesthetic gas respectively,four power outlets,one network outlet.(Optional gases)
Technical Specifications:
| Product Type | MT05121021 | |
| Product Configuration | The standard configuration | Optional configuration |
| Arm length | 1000mm | 750mm |
| Dead weigh | 150kg | 200kg |
| Circurotating angle scope | 320°(max) | / |
| Height of movement | 700mm | 500mm |
| Voltage | 220V/50Hz | / |
| Power | 450W | / |
| Control Type | Air Pressure Control | / |
| Drive power | <50N | / |
| Power jacks | 4 | / |
| Internet/telephone jacks | 1 | / |
| Gas terminal | Each compressed air/nitrous oxide/oxygen/attract gas/narcotic gas emissions(German-style) | / |
| Tray | 1 | / |
| Drawer | 1 | / |
