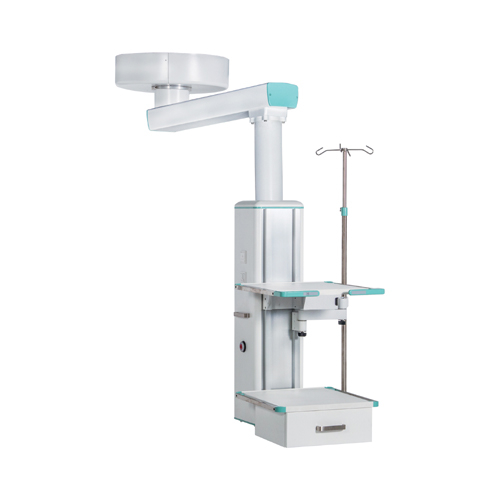

CE/ISO Approved Medical Surgical Manual Pendant Ceiling Supply Unit (MT05121041)
Surgical pendant is a necessary equipment for modern clean operation rooms,general operation rooms and ICU sickrooms.All kinds of terminals such as medical gas,electricty,network are all gathered on the control board.Some medical machines of certain weight can be placed on the board and drawer.
Features:
1.The cross arm and control cabinet of the tower crane adopt the imported high-strength aluminum alloy of patent technology for the one-off extrusion molding,and the surface undergoes the primary oxidation treatment.
2.Aluminum molding tray with non-slip texture.
3.Mechanical friction damping brake.
4.The gas pipeline,power supply and computer communication line are separately arranged without interference.
5.The imported German standard gas terminal(over20,000 of inserting and pulling out) is adopted.
6.The horizontal rotation function can accurately position without excursion.
Basic configuration:
One discharge device(German style)for oxygen,suction gas and compressed air,four power outlets,one network outlets.(optional gases)
Technical Specifications:
| Product Configuration | The standard configuration(twin towers) | Optional configuration(twin towers) | ||
| Arm length | observation tower 1000mm | infusion tower600/800mm | obervation tower1000mm | infusion tower/600/800mm |
| Dead weigh | 500kg | 200kg | / | / |
| Circurotating angle scope | 320° | 320° | / | / |
| Control Type | Air Pressure Control | Air Pressure Control | ||
| Drive power | ≤50N | ≤50N | ||
| Power jacks | 4 | 8 | / | / |
| Internet/telephone jacks | 1 | / | ||
| Gas terminal | Each compressed air/oxygen/attract gas(German-style) | (one oxygen/two attract gas)(German-style) | Optional configuration | Optional configuration |
| tray | 2 | / | Optional configuration | / |
