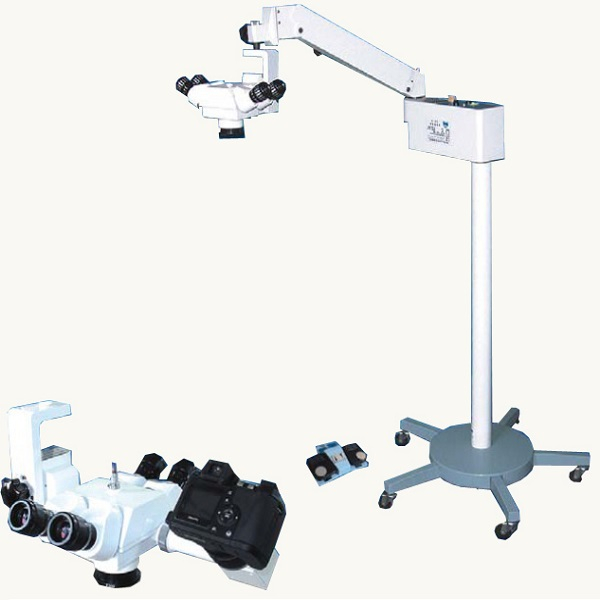

Medical Hand Microsurgery Orthopedic Operation Microscope (MT02006101)

Availability:
  • Operation Microscope
  • Operation Microscope
  • CE, ISO13485
  • All The People
  • Orthopedic Operation Microscope
  • Medtrue

CE/ISO Approved Medical Hand Microsurgery Orthopedic Operation Microscope(MT02006101)

1.APPLICATION
This product is a good property optical instrument which is widely used in microsurgery operation and animal experiment. It is suitable for carrying out anastomostes of capillary and nerve in different kinds of microsurgeries, such as orthopaedics, hand surgery, plastic surgery, obstetrics and gynecology. It can be used in animal experiment, it is a good and cheaper medical instrument in the field of microsurgery.

2.FEATURES
1) The formation of image clear with a better stereosensibility.
2) Two doctors observe by one way of light.
3) The visual field is wide by a cold coaxial illuminative system.
4) Stable operation, light and flexible.

3.MAJOR TECHNICAL INDEX
1)Mechanical  performance:
A)Stand up-down range: Spring arm adjustment range:250mm; motorized up-down range:50mm
B)Motorized up-down speed: 2.5mm/s
C)Direction Adjusting RangeLevel:±180ºLeft And Right: ±90º
D) Longest Turning Radius of Cross-Arm:800mm

2)Electric Features
A)Maximum illumination of light source. Not Less Than 15000LX
B)Bromine and Tungsten Lamp:8V 50W
C)Voltage Of Power:220±10% 50Hz

Large Objective LensOperation Distance(mm)Magnification(X)Field of Visual(mm)
f'=200192.741027.5
f'=250249.84834.4
