Medical Ophthalmic and Orthopedic Operating Microscope (MT02006102)

Availability:
  • Operation Microscope
  • Operation Microscope
  • CE, ISO13485
  • All The People
  • Orthopedic Operation Microscope
  • Medtrue

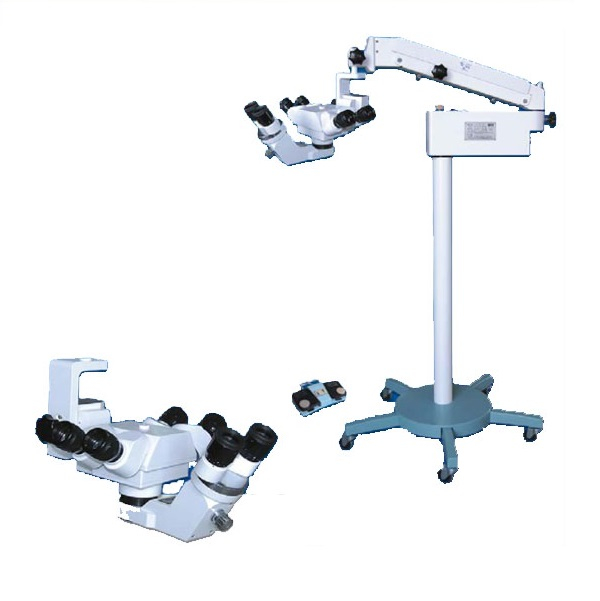

CE/ISO Approved Medical Ophthalmic and Orthopedic Operating Microscope(MT02006102)


MT02006102  Operation Microscope is developed mainly for the anastomosis of capillaries and nerves in orthopedic microsurgeries, and it can also be applied in ophthalmic surgeries. It is an excellent instrument with reliable quality and high cost effectively.

Features
1.Clear images, Strong Stereoscopic perception
2.One light route for two doctors operating at the same time
3.Coaxial cold light source for bright illumination in Depth
4.Fine adjustment of position through footswitch

Specifications
1.Mechanical performance:
A.Stand up-down range:
Spring arm adjustment range:250mm;
Motorized up-down range: 50mm
B.Motorized up-down speed: 2.5mm/s
C.Direction Adjusting Range: Level:±180º Left /Right: ±90º
D.Longest Turning Radius of Cross-Arm:800mm

2.Electric Features
A.Maximum illumination of light source. Over 30000LXB.
Cold light source:8V 50WC.
Power supply: 220V/50Hz or 110V/60Hz

Principal ObjectiveWork LengthMagnificationView Field
f=200mm192.74mm10X27.5mm
F=250mm249.84mm8X34.4mm
Assistant Scope f=200mm192.74mm4X52mm
