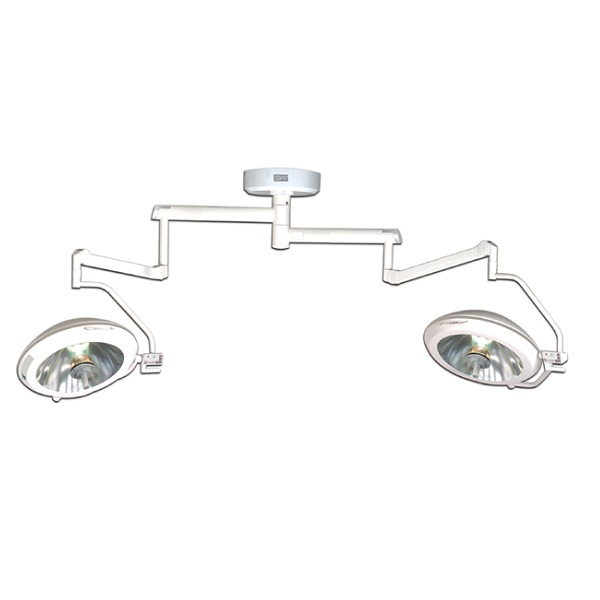

CE/ISO Approved Shadowless Operating Lamp (MT02005B04)
Introduction:
Shadowless operation lamp is suitable for the requirements of various operation conditions and it is ideal operating lighting equipment for modern operation rooms and clean operation rooms.
Features:
1.The no welding titanium alloy main arm is adopted,so that the apperance is aesthetic and the rotation is more flexible and convenient.
2.The removable handle sheath can be disinfected at the high temperature of 135°c.
3.The depolished panel made o imported material makes the light rays softer.
4.The imported switch power supply is adopted to control the voltage,making the work voltage permanently stable.
5.The special radiation filter reducing the heat to the minimum level.
6.The multi-flake retroreflector made of imported aluminum sheet has the features of no coating film and never fading.
7.Imported lamp receptacle,Tungsten halogen bulbs of international brand are adopted with the average service more than 1500hours.
8.Light adjustment circuit adopts CPU control,enabling increase or decrease of illumination and boasting brightness memory.
9.One lamp holder with two bulbs enables automatic operation of the standby bulb in 1/2second when the main bulb malfunctions,and it has indicators for the damage of main or standby bulb.
Technical Specifications:
| Illumination: | 60, 000-120, 000LuX |
| Color Temperature | 4500±500K |
| Depth of light beam: | ≥ 700mm |
| Brightness level adjustment: | CPU light-dimmer |
| Shift of major and stand by lamps: | automatic |
| Color temperature: | 4500K± 500K |
| Color rendering index | 100≥Ra≥85 |
| Total irradiance | ≤ 600w/m² |
| Diameter of lamp holder: | 600/600mm |
| Mains voltage: | AC220V± 20% 50Hz |
| Bulb voltage: | AC24V 150/150w |
| Input power: | 4400+10%VA |
| Minimum Height for installation: | 2800-3200mm |
