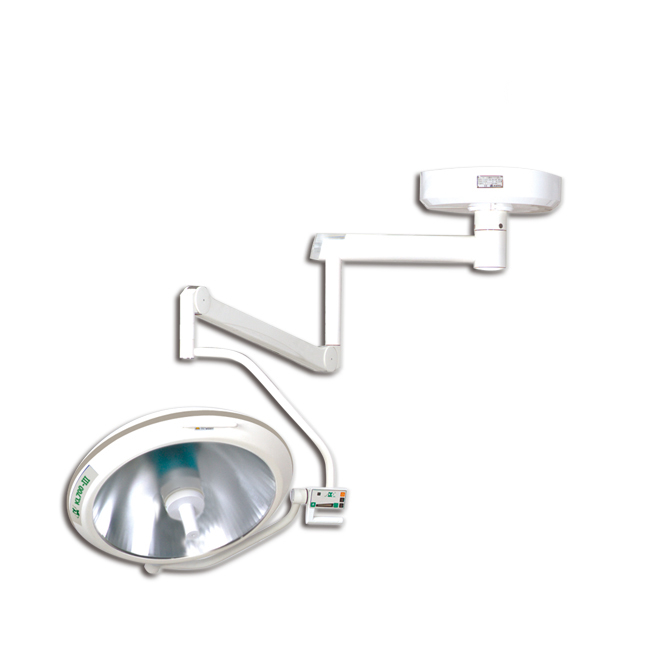

CE/ISO Approved Integral Reflection Operating Lamp (MT02005A10)
TECHNICAL SPECIFICATION:
Illumination: 80, 000-160, 000LX (at 1m distance)
Facula diameter: φ 100~φ 280mm
Depth of light beam: ≥ 600mm
Brightness adjustment: 8-stage continuous
Shift of major and stand by lamps: Automatic
Color temperature: 4500K± 500K
Temperature rise: ≤ 12º C
Temperature rise on the head of patient: ≤ 2º C
Diameter of lamp holder: 700mm
Mains voltage: AC220V± 20% 50Hz
Bulb voltage: AC24V Bulb power
Input power: 200VA
Height for installation: 280-320cm
FEATURES:
1. Imported aluminum sheet squamulose reflector
2. Imported polish panel
3. Titanium main arm
4. Optional imported spring arm
5. OSRAM halogen bulbs
6. Automatic change to standby bulb in 1/2 second
7. Indicator for damaged bulb
8. Dischargeable handle
9. Battery is optional
