Anaesthesia Machine
CE, ISO13485
All The People
All The Use
With LCD Display
Air

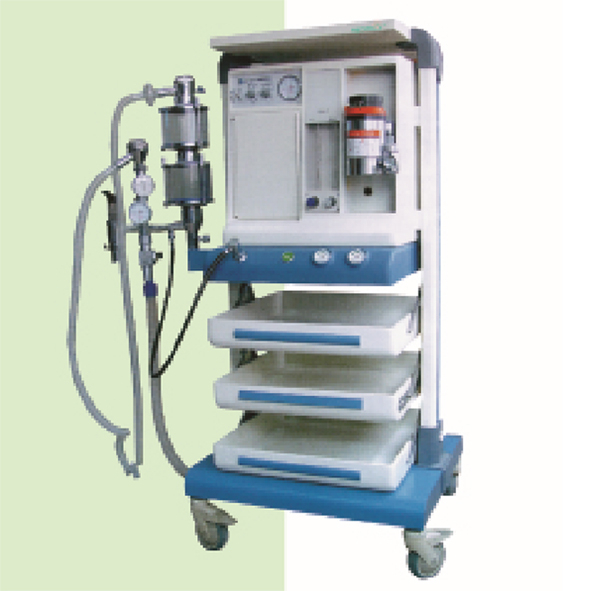

CE/ISO Approved Hot Sale Medical Anaesthesia Machine (MT02002002)
Features:
1.Flowmeter with ORC system to ensure oxygen concentration not less than25%.
2.N2O cut-off device.
3.O2 deficiency alarm.
4.SC-M3A1 anesthesia ventilator,with easy operation and low-air consumption.
5.Top plate intended for all kinds of monitors.
Specification:
1.Gas supply:0.27-0.55Mpa
2.Adjustment range of flow:O2: 0.1-1.5L/min,N2O:0.05-10L/min
3.ORC system: O2 concentration≥25%( O2 +N2O)
4.O2 deficiency alarm:audible alarm occurs when O2 pressure≤0.2Mpa
5.O2 flush:35-75L/min(O2 pressure 0.45Mpa)
6.Vaporizer:0.2-5VOL%
7.Adjustment range of APL:0.5-7kPa
8.SC-M3A1 anesthesia ventilator:Freq:6-40bpm,MV:3-18L/min,I;E:1.5(fixed)
9.Safety working pressure:≤6kPa
10.Monitor:Airway pressure,tidal volume,MV,Gas resource pressure.
