CE/ISO Approved Medical Ophthalmic Operating Microscope (MT02006103)

Availability:
  • Operation Microscope
  • Operation Microscope
  • CE, ISO13485
  • All The People
  • Ophthalmic Operating Microscope
  • Medtrue

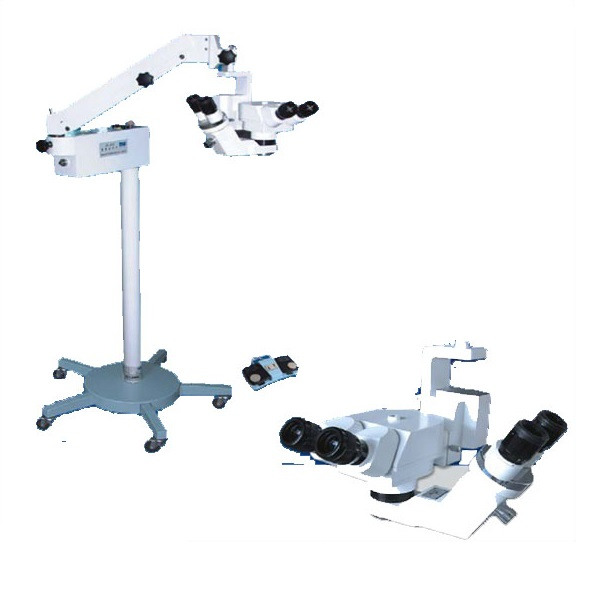

CE/ISO Approved Medical Ophthalmic Operating Microscope(MT02006103)

MT02006103 Operation Microscope is a newly developed instrument on the basis of 30 years development of the microscope technology of our company. It can be used widely in the field of ophthalmic Operation and experiments in hospitals, clinics and research institutes. It is with excellent quality and easy operation.

Features
1.Clear images, wide visual angle
2.Assistant microscope for two operators observing at the same time
3.Coaxial cold light source for bright illumination in Depth
4.Fine adjustment of position through footswitch

Specifications
1.Mechanical performance:
A.Stand up-down range:
Spring arm adjustment range:250mm;
Motorized up-down range: 50mm
B.Motorized up-down speed: 2.5mm/s
C.Direction Adjusting Range: Level:±180º Left /Right: ±90º
D.Longest Turning Radius of Cross-Arm:800mm

2.Electric Features
A.Maximum illumination of light source. Over 15000LX
B.Cold light source:8V 50W
C.Power supply: 220V/50Hz or 110V/60Hz

Principal Objective

Work Length

Magnification

View Field

Main Scope f=200mm

192.74mm

10X

27.5mm

Assistant Scope f=200mm

192.74mm

4X

52mm

Options
CCD Connector
Digital Connector
