Suction Unit
CE, ISO13485
All The People
All The Use
With LCD Display
Air

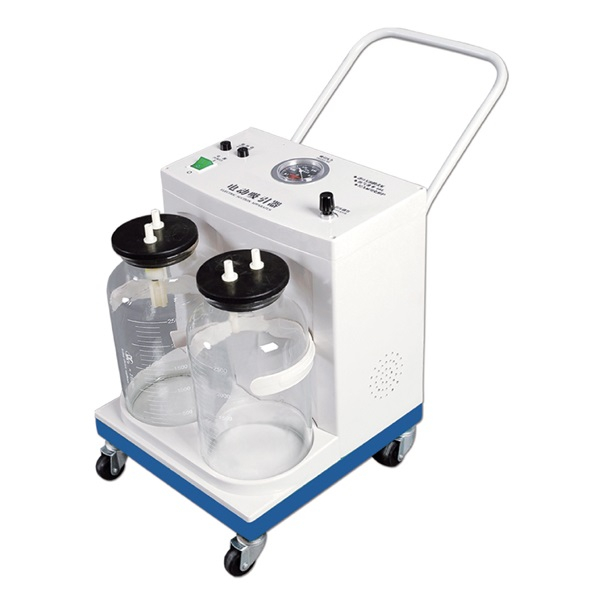

CE/ISO Approved Medical Electric Mobile Suction Unit Device (MT05001019)
Introduction:
Electrical suction device is a novel style mobile suction unit,which shell is made of plastic.It is fit for suctioning pus,blood,sputum and other thick liquid in human body.It adopts imported film type vacuum pump,avoiding the pollution of oil mist. The pump requires no daily maintenance and servicing. The overflow protection device in the machine may prevent liquid from flowing into the pump.Hand-operated switch and foot-step switch are connected in parallel for option.The complete machine works stably and produces a low level of noise and has a great flux.It can be easily operated and is durable.
Features:
1.All-plastic ABS enclosure that is formed in one piece is adopted.
2.The device is equipped with a imported membrane pump available with long service life.
3.This device has low noise and is maintenance-free.
4.This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
5.It's equipped with the hand-operated switch and footstep-operated switch.
Techinical Specifications:
| Power voltage: AC220V±10% 50Hz |
| Negative pressure: ≥0.09MPa (680mmHg) |
| Suction rate: ≥25L/min |
| Range of negative pressure: 0.013MPa~0.09Mpa (680mmHg) |
| Suction bottle: 2500ml x 2 |
| Noise: ≤55dB |
| Input power: 400VA |
| Pump structure: Diaphragm type |
| Working type: intermittent loading,continuous operation |
Product Advantages:
| imported diaphragm pump |
| all ABS plastic shell |
| long service life time |
| glass bottle for cleaning & disinfection |
| oil-free pump is maintenance-free |
| low noise |
| with an overflow protection |
