Suction Aaspiratior
CE, ISO13485
All The People
All The Use
With LCD Display
Air

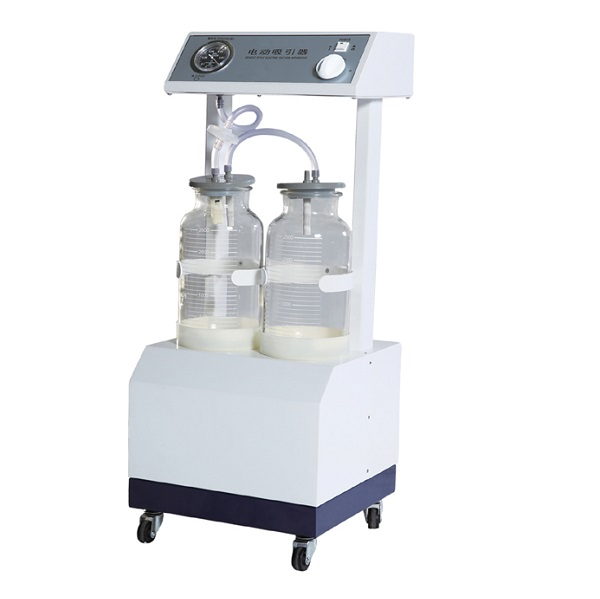

Electrical suction device is a new style suction device for medical use. It can meet most of the negative pressure requirements in operating rooms, wards and other departments in hospitals. It is used for taking out pus, blood, sputum and other thick liquid in human body. The machine adopts imported diaphragm pump, and the pump requires no daily maintenance and servicing. The liquid vessel placed directly on the mobile setup makes it easy to observe the liquid level in the vessel. Overflow protection device can prevent the liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works reliably, produces low level of noise. It is long in service life and reliable and safe in use(All-plastic cases are adopted for 23C· V)
Features:
This device is of vehicle frame design, allowing for easy movement.
The device is equipped with a imported membrane pump available with long service life.
This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
This device has low noise and is maintenance-free.
Technical Specifications:
Power voltage: AC220V± 10% 50Hz
Negative pressure: ≥ 0.09MPa(680mmHg)
Suction rate: ≥ 25L/min
Range of negative pressure: 0.013MPa~0.09Mpa(680mmHg)
Suction bottle: 2500ml x 2
Noise: ≤ 55dB
Input power: 150VA
Pump structure: Diaphragm type
Working type: Intermittent loading, continuous operation
Product Advantage:
1. Vehicle frame design, easy movement
2. Imported diaphragm pump
3. Long service life time
4. Plastic bottle for cleaning & disinfection
5. Oil-free pump is maintenance-free
6. Low noise
7. With an overflow protection
