CE, ISO13485
Electrical Sunction Aaspiratior
Medtrue
Mt05001047
400va
0.013~0.09MPa

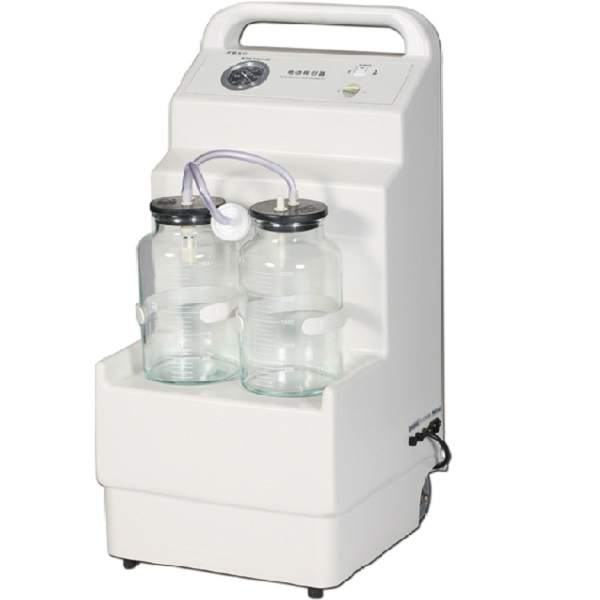

CE/ISO Approved Medical Electric Suction Device (MT05001047)
Introductions:
Electrical suction device adopts diaphragm negative pressure pump without oil mist pollution. It can be applied in suctioning pus, blood, thick secretions in surgical operations in hospitals, and may also be used in induced abortion or some other purposes.
Electrical suction units is new style mobile suction devices, are devices for medical use designed for operations of gynecology in hospitals for taking out pus, blood, sputum and other thick liquid in human body. The pump requires no daily maintenance and servicing. The overflow protection device in the machine prevents liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works stably and produces low level of noise. It is long in service life and safe and reliable in use. All-plastic cases are adopted for it.
Features:
1.All-plastic ABS enclosure that is formed in one piece is adopted.
2.The device is equipped with a imported membrane pump available with long service life.
3.This device has low noise and is maintenance-free.
4.This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
5.It's equipped with the hand-operated switch and footstep-operated switch.
TECHNICAL SPECIFICATION:
| Power voltage: | AC220V±10% 50Hz |
| Negative pressure: | ≥0.09MPa(680mmHg) |
| Suction rate: | ≥25L/min (35L pump suitable) |
| Range of negative pressure: | 0.013MPa~0.09Mpa(680mmHg) |
| Suction bottle: | 2500ml x 2 |
| Noise: | ≤55dB |
| Input power: | 400VA |
| Pump structure: | Diaphragm type |
| Working type: | intermittent loading,continuous operation |
PRODUCT ADVANTAGE:
| imported diaphragm pump |
| all ABS plastic shell |
| long service life time |
| glass bottle for cleaning & disinfection |
| oil-free pump is maintenance-free |
| low noise |
| with an overflow protection |
CE/ISO Approved Medical Electric Suction Device (MT05001047)
Introductions:
Electrical suction device adopts diaphragm negative pressure pump without oil mist pollution. It can be applied in suctioning pus, blood, thick secretions in surgical operations in hospitals, and may also be used in induced abortion or some other purposes.
Electrical suction units is new style mobile suction devices, are devices for medical use designed for operations of gynecology in hospitals for taking out pus, blood, sputum and other thick liquid in human body. The pump requires no daily maintenance and servicing. The overflow protection device in the machine prevents liquid from flowing into the pump. Hand-operated switch and footstep-operated switch are connected in parallel for option. The complete machine works stably and produces low level of noise. It is long in service life and safe and reliable in use. All-plastic cases are adopted for it.
Features:
1.All-plastic ABS enclosure that is formed in one piece is adopted.
2.The device is equipped with a imported membrane pump available with long service life.
3.This device has low noise and is maintenance-free.
4.This device is equipped with an overflow protection unit to prevent liquid from getting into pump body.
5.It's equipped with the hand-operated switch and footstep-operated switch.
TECHNICAL SPECIFICATION:
| Power voltage: | AC220V±10% 50Hz |
| Negative pressure: | ≥0.09MPa(680mmHg) |
| Suction rate: | ≥25L/min (35L pump suitable) |
| Range of negative pressure: | 0.013MPa~0.09Mpa(680mmHg) |
| Suction bottle: | 2500ml x 2 |
| Noise: | ≤55dB |
| Input power: | 400VA |
| Pump structure: | Diaphragm type |
| Working type: | intermittent loading,continuous operation |
PRODUCT ADVANTAGE:
| imported diaphragm pump |
| all ABS plastic shell |
| long service life time |
| glass bottle for cleaning & disinfection |
| oil-free pump is maintenance-free |
| low noise |
| with an overflow protection |
