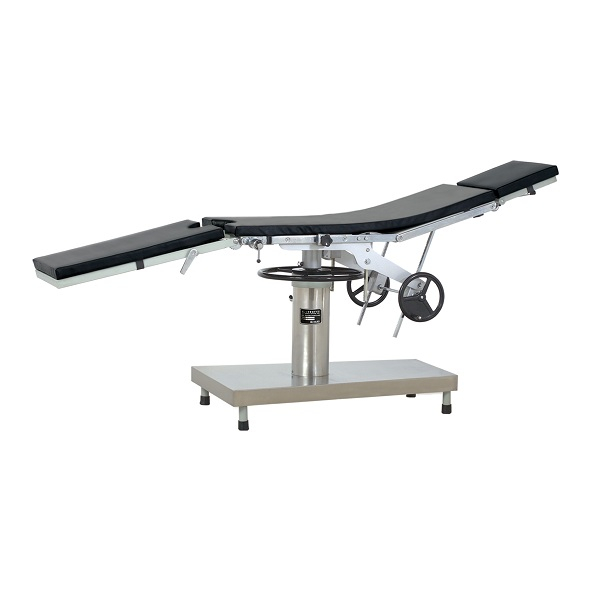

CE/ISO Approved Medical Surgical Ordinary Universal Manual Operating Table (MT02013001)
Introduction:
Operating table is suitable for various operations conducted by medical unit.
Features:
1.MT02013001 type base seat and upright column covering are made of high quality 304 stainless steel.
2.Adopting manual screw rod to elevate operation table.
3.The rear plate is adjusted by gear and leg plate is adjusted by ratchet.
Technical Specifications:
| length:2100±50mm |
| Width:480±20mm |
| height:(800-1050)mm±20mm |
| Back board Fold upward:80° Fold downward:30° |
| Head board Fold upward:45° Fold downward:90° |
| Leg board Fold downward:90° |
| Waist board elevation:120mm |
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of arn resting frame,a pair of leg support frame,a screen frame.
