Operating Table
CE, ISO13485
All The People
All The Use
With LCD Display
Air

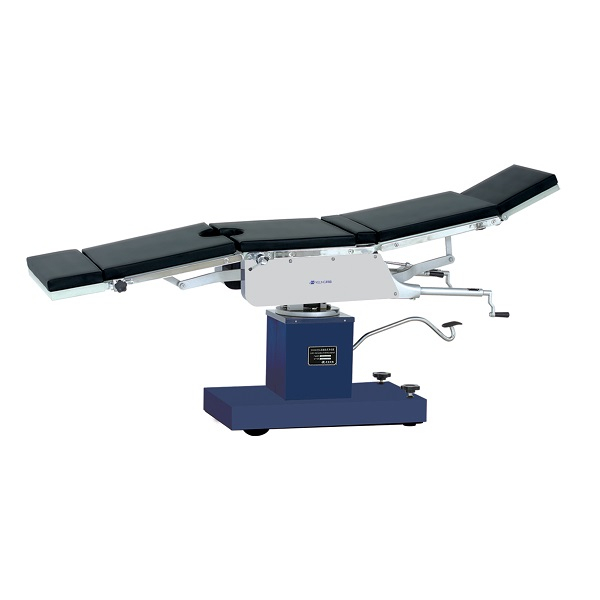

CE/ISO Approved Medical Surgical Head Operated Universal Operating Table (MT02011002)
Introduction:
Intended for surgical operations on head,neck,pleuroperitoneal cavity,perineum,limbs,ect.in hospital.Oil pump provides hydraulic elevation;operating table controlled on the two sides to achieve the required position.
Features:
1.Imported Y type sealing ring with good special performance and is durable.
2.All movements are manipulated from the head.
Technical Specifications:
| Length: 2050± 50mm |
| Width: 480± 20mm |
| min-max height: (750-950)± 50mm |
| Backboard Upwards/downwards: 75° / 5° |
| Trendelenburg/Rev-Trend:20° |
| Tilt(Left)/Tilt(Right):20° |
| Head board upward/downward:30°/90° |
| Leg board Outwards: 90° |
| Waist board lifting:100mm |
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waisthand.
CE/ISO Approved Medical Surgical Head Operated Universal Operating Table (MT02011002)
Introduction:
Intended for surgical operations on head,neck,pleuroperitoneal cavity,perineum,limbs,ect.in hospital.Oil pump provides hydraulic elevation;operating table controlled on the two sides to achieve the required position.
Features:
1.Imported Y type sealing ring with good special performance and is durable.
2.All movements are manipulated from the head.
Technical Specifications:
| Length: 2050± 50mm |
| Width: 480± 20mm |
| min-max height: (750-950)± 50mm |
| Backboard Upwards/downwards: 75° / 5° |
| Trendelenburg/Rev-Trend:20° |
| Tilt(Left)/Tilt(Right):20° |
| Head board upward/downward:30°/90° |
| Leg board Outwards: 90° |
| Waist board lifting:100mm |
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waisthand.
