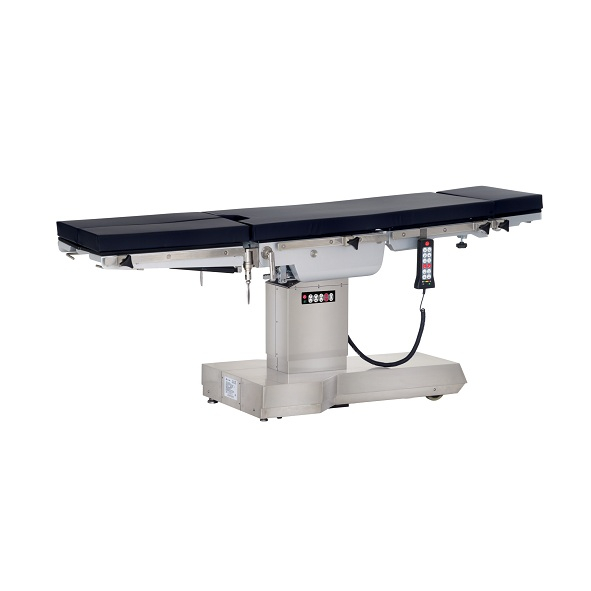

CE/ISO Approved Electrical Operating Table (MT02010003)
MT02010003 is a cost-effective,multi-performance mobile operating table that meets the requirements of different surgeons.The clinical staff can easily operate the table quickly and effectively,even in a darkened operating theather.The large loading capacity accommodates patients of different sizes.
TECHNICAL SPECIFICATION:
Length: 2100± 50mm
Width: 480± 20mm
Height: (750_ 950)mm± 50mm
Forward: ≥ 30°
Backward: ≥ 20°
Leftward≥ 18° R
ightward≥ 18°
Head board Fold upward≥ 45°
Fold downward≥ 90°
Back board Fold upward≥ 75°
Fold downward≥ 18°
Leg board Fold downward≥ 90°
Waist board elevation ≥ 120mm
The super low level design can enable doctor to conduct operation sitting by operating table.
The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.
The bed surface adopts imported carbon plastic plate, which can fulfill the needs of X-ray examination, photography.
The mattress is once foam molded by polyurethane with homogeneous force.Various actions are controlled according to electric hydraulic working principle and by remote controller.
Electric brake control which is easily for moving operating table.
The operating Surgical Operation Table platform support body is Aluminum Alloy, the bed surface adopts imported carbon plastic plate, the Surgical Operation Table can be moved vertically which can fulfill the needs of C type arm whole body examination.
The mattress is once foam molded by polyurethane with homogeneous force.
Various actions are controlled according to electric hydraulic working principle and by remote controller.
German Import motord and Japan Electromagnetic valve Both alternative and direct current can be used, controlled by CPU with one-key reset function.
Imported sealing ring and is durable.The base adopts high quality 304 stainless steel which can be easily cleaned and sterilized.
Electric brake control which is easily for moving operating Surgical Operation Table.
FEATURES:
1.Imported hydraulic motor and solenoid valve from HOERBIGER
2.It has the function of auto-restoration
3.Electro-hydraulic mode of operation is adopted.Two control modes(hand-held remote controller and panel)are available to control various movements.MCU processing is used.Self-locking function is provided to aviod false triggering.
4.Quality stainless steel 304 is used for table support,base plate,column shield and rails on both sides of the tables,easy for cleaning and sterilization.Console supports the use of cast aluminum parts,never rust.
5.The matttress is wrapped with imported aritificial leather.High-density memory sponge is formed in one piece,with no seam.
6.Imported carbon steel plate is used for the table top,which is convenient for X-RAY photography.
7.AC and DC can use at the same time.
8.The table top can sliding
9.Electric braking device,convenient foe shifting the operating table.
TECHNICAL SPECIFICATION:
| length: 2000±50mm |
| width: 500±20mm |
| min-max height: (750-1150)±50mm |
| forward:≥ 30° backward:≥ 30° |
| leftward:≥ 20° rightward:≥ 20° |
| horizontal and longitudinal movement: 350mm |
| leg board fold downward:≥ 90° fold outward:≥ 90° |
| back board fold upward:≥ 70° fold downward:≥ 45° |
| head board fold upward:≥ 40° fold downward:≥ 90° |
| waist board lifting ≥ 100mm |
| mains voltage: AC 220V±10% 50Hz |
| input power: 400VA |
PRODUCT ADVANTAGE:
| 1.Imported German hydraulic engine |
| 2.Auto restoration |
| 3.AC/DC |
| 4.Impoted electromagnetic valve |
| 5.Impoted sealing ring |
| 6.Do X-ray&C-arm |
