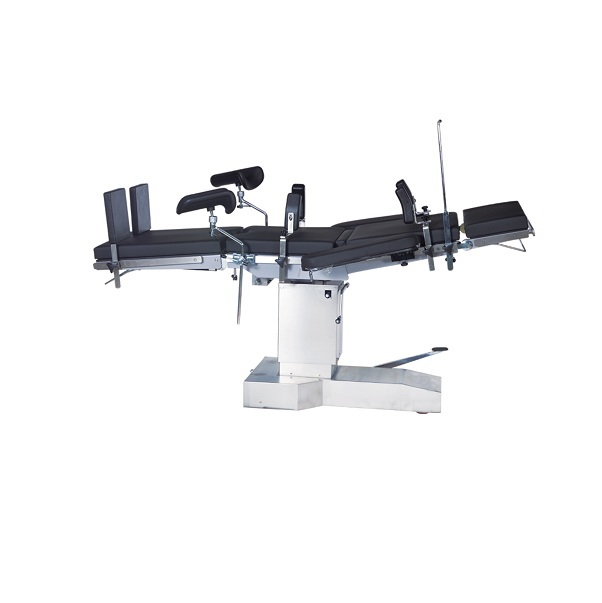

CE/ISO Approved Medical Surgical Universal Manual Hydraulic Operating Table (MT02010103) )
Introduction:
Universal Operating Table is used in the operations of thoracico-abdominal surgery,department of ophthalmology,department of otorhinolaryngology,department of obstetrics and gynecology,and urological department.
The present produc adopts foot hydralic mechanical drive and cylinder to control various actions on table surface with integration of oil pump and oil tank.The head plate and leg plate of this operating table may exchange their position and make insertion, so as to enable the patient on the operating table to take full body X ray and C-type film to realize nonobstacle function of full body fluroscopy. It has the features that it is easy to use,its location,its structure is compact and rational,and its model is novel.
Features:
1.Various actions are controlled by hydraulic pneumatic system and mechanical driven system.
2.Head plate can be exchanged with leg plate which can fulfill the needs of C type arm complete examination,X-ray photography.
3.Imported Y type sealing ring is durable.
4.The table surface adopts imported carbon plastic,the mattress adopts high density memory sponge and is once formend,with no seam.
5.Quality stainless steel 304 is used for base plate,column shield and rails on both sides of the table, easy for cleaning and sterilization.
6.Foot treadle brake device which is easily for moving operating table.
Technical Specifications:
| Length: 2000± 50mm |
| Width: 500± 20mm |
| min-max height: (700-1000)± 50mm |
| forward≥ 20° backward≥ 20° |
| leftward≥ 15° rightward≥ 15° |
| Back board Folding upward≥ 65° |
| Head board Fold upward≥ 90° Fold downward≥ 90° |
| Leg board Folding downward≥ 90° |
| Ascending distance:300±50mm |
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waisthand.
