Operating Table
CE, ISO13485
Medtrue
Mt02010104
Jiangsu China (Mainland)

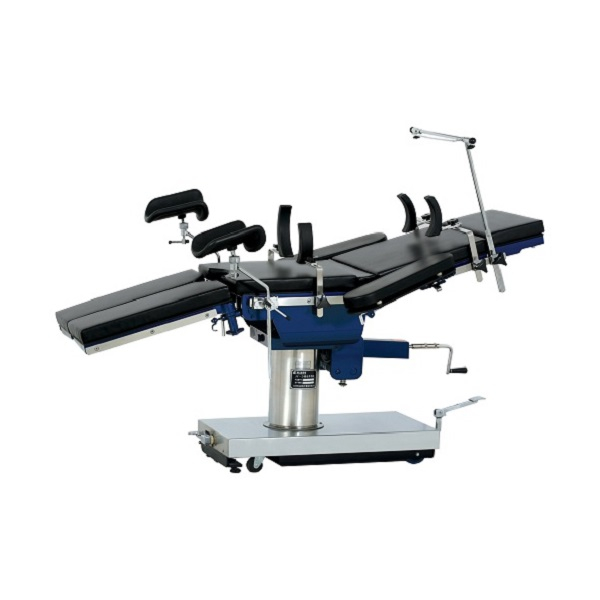

Universal Operating Table
CE/ISO Approved Universal Operating Table (MT02010104)
Introduction:
Universal Operating Table is mainly used by department of thoracic surgery, ophthalmology, E.N.T, Obsterics & Gynecology and urology for common operations.
This product adopts the foot-stepping hydraulic pressure pump which combines oil-saving pump tank with driving machine,threadlike pole drive and air vat so as to control variable movements on the table. It provides convenient operation,reliable orientation,compact and reasonable structure,novel sculpt,etc.
Features:
1.Various actions are controlled by hydraulic pneumatic system and mechanical driven system.
2.The table can be rotated 360° on the condition that the base is fixed.
3.Imported Y type sealing ring is durable.
4.The table surface adopts imported carbon plastic plate which is easily for conducting X-ray examination, photography
5.Both sides of the bed rail for the high quality 304 stainless steel.
6.Table support is formed with alloy aluminum by forging process and will never get rusty.
7.The mattress is wrapped with imported artificial leather.High-density memory sponge is formed in one piece, with no seam.
8.The base seat and upright column covering are made of high quality 304 stainless steel which can be easily cleaned and sterilized.
9.Foot treadle brake device which is easily for moving operating table.
Technical Specifications:
| Length: 1900± 50mm |
| Width: 500± 20mm |
| min-max height: (740-1030)± 50mm |
| Front inclination≥ 25° backward inclination ≥ 15° |
| left inclination ≥ 25° rightward inclination ≥ 25° |
| Back board Folding upward≥ 50° downward≥ 15° |
| Head board Fold upward≥ 15° Fold downward ≥ 90° |
| Leg board Folding downward≥ 90° Fold outside ≥ 90° |
| Table rated load capacity:180kg |
Standard Accessories:
A pair of shoulder support frame, a pair of waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame, a pair of pedal foot board, a waisthand.
