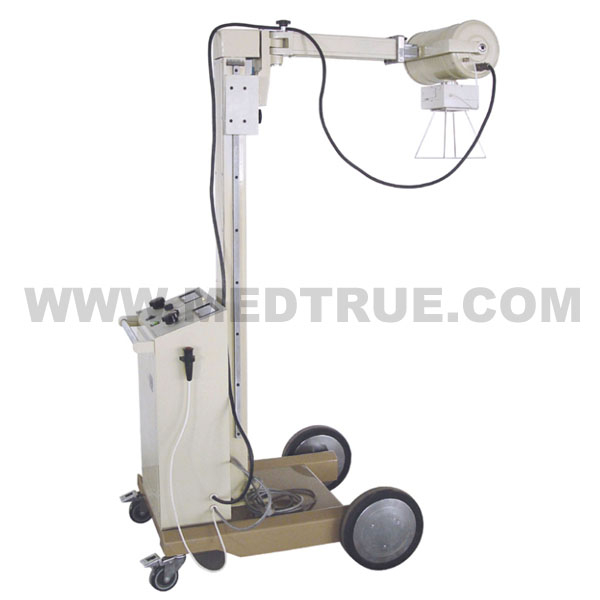

CE/ISO Approved High Quality Sale Medical 100MA Mobile Bedside X Ray Unit (MT01001E12)
Features:
1. Can be used in ward and emergency treatment room.
2. X-ray generator is combined.
3. Single focus, bridge rectification.
4. It is precise, safe, reliable and flexible.5. A wireless remote control device (control range≥ 5 m) is used
| X-ray generator | Stationary anode, single focus, and bridge silicon rectification, The X-ray generator is an oil-immersed self-cooled unit. | ||||
| Max rated capability | Current | 15mA | 30mA | 60mA | 100mA |
| Voltage | 90kvp | 90kvp | 90kvp | 80kvp | |
| Time | 6.3s | 6.3s | 4.0s | 3.2s | |
| Power supply | Voltage | 180~ 240V | |||
| Frequency | 50Hz | ||||
| Power | not lower than 7kVA | ||||
| Resistance | not larger than 1Ω | ||||
| Voltage adjustment range of x-ray tube | 50~ 90kVp | ||||
| Range of the timer | 0.08~ 6.3 s | ||||
