Mobile C-Arm X-ray Imaging Machine
Medtrue

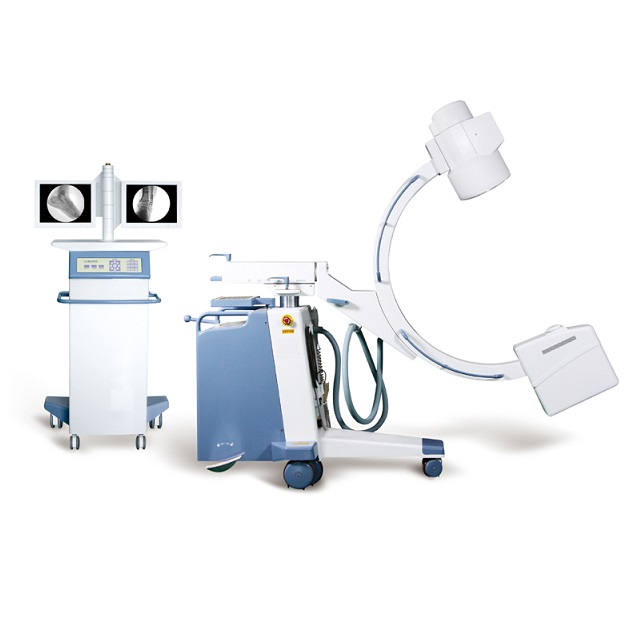

CE/ISO Approved Medical High Frequency Mobile C-Arm X-Ray Imaging System Machine(MT01001102)
Application:
Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.
General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography and angioplasty.
Key features:
1)With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.
2)10.4"LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.
3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.
4)With a steering handle, it can adjust the direction quickly when moving.And parallel movement function is also available.
5) Equipped with unique block line wheels, it can avoid accident when the machine moves.
6)Large free space in arc: the space can reach 800mm,which is convenient for operation.
7)9"/6"/4.5" three fields of vision:it facilitates diagnosis of partial enlargement.
8)CCD camera with rotation function:range of camera rotation:360.
9)Original Korean linear slide rail can make the the movement of the machine flexibly.
10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.
| Main specification | |
| HF generator | 110kV,3.5kW ,40kHz |
Fluoroscopy mode | Fluoroscopy mode40~110kV 0.5~5mA (KV manual and automatic); Pulsd fluoroscopy 40~110kv 0,5-5mA Boost fluoroscopy 40~110kV 5~10mA; Photography 40~110kV 1~250mAs |
| X ray tube | Dual-focus fixed anode:0.6mm/1.5mm |
| Image intensifier | Three fields of vision 9, 6, 4.5 French Thales Brand |
| CCD camera | CCD camera, Japanese Watt Brand, 360° rotation |
Image system | Recursive Noise Reduction Frame freezing Multi frame image storage Image conversing and rotating Screen display with image comparison |
| Mechanical motion specifications | Verticaltravel:0-400mm Horizontaltravel:0~200mm Rotation about horizontal axis:±180° |
C-arm dimension | Distance of focal spot to image generator(SID):1000mm Depth in arm≥650mm Mobile stand :1800mm*800mm*1850mm Image system: 750mm*530mm*1680mm |
Standard configuration | High resolution CCD camera:1set x-ray generator:1set 9" image intensifier:1set Digital Noise reduction system 14" High resolution monitor :2sets Mobile stand :1 set |
