Physiological Functions of Diagnosis and Monitoring Equipment
X Ray Equipment
CE, ISO13485
X-ray Equipment
Medtrue
Mt01001232

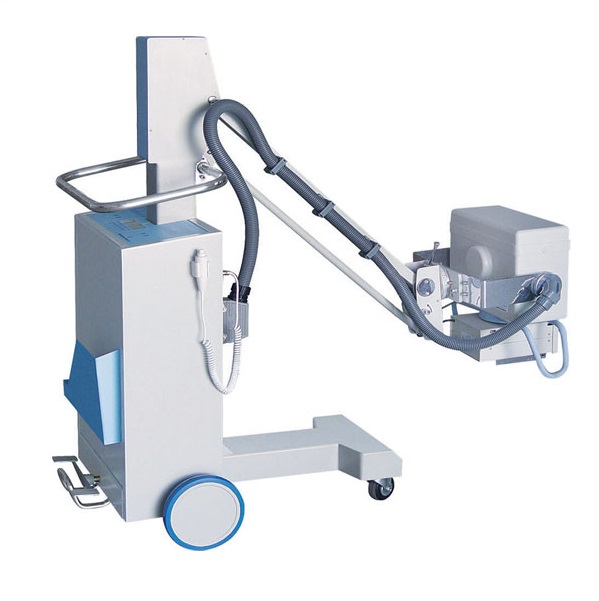

CE/ISO Approved Medical High Frequency Mobile X-ray Equipment (MT01001232)
Features:
1.Equipped with a built-in rechargeable battery can be operated from battery and from mains powers,suitable for making radigraphy for all body parts in any places and at any time.
2.Creative designing make such less weight and much smaller volume than any other similar ones.
3.Unique locating mode and swift radiography capacity provide perfect and handy operating.
4.Precise and efforts adjustment of counterbalanced tube arm and rotatable tube head.
| Output Power | 5KW |
| Inverter Frequency | 50KHZ |
| Tube Voltage | 40-120KV |
| Tube Current | 25mA-100mA |
| mAs | 1.0-180mAs(46steps) |
| Power Supply | 220V±10%,50HZ |
| ≤1.0Ω | |
| Anode Type | Fixed Anode |
| Focal Point | 1.5mm |
| Anode Heat Capacity | 35KJ(47KHU) |
| Tube Heat Capacity | 500KJ(666KHU) |
| Dimensions | 120cm * 62cm * 130cm |
| Net Weight | 150kg |
| SID | 500mm-1750mm |
| 180° | |
| Vertical Axis Rotation | '-30 - +90° |
| Beam Limiting Device Rotation | 180° |
| Stand Column Rotation | NO |
| Supporting Arm | Two-arm Supporting |
| Power Supply Mode | Joint the Power Line |
| Operating Mode | Wire/Wireless control |
| Operation Panel | Two-Button Type |
| Standard Configuration | 20m Microwave Remote Controller |

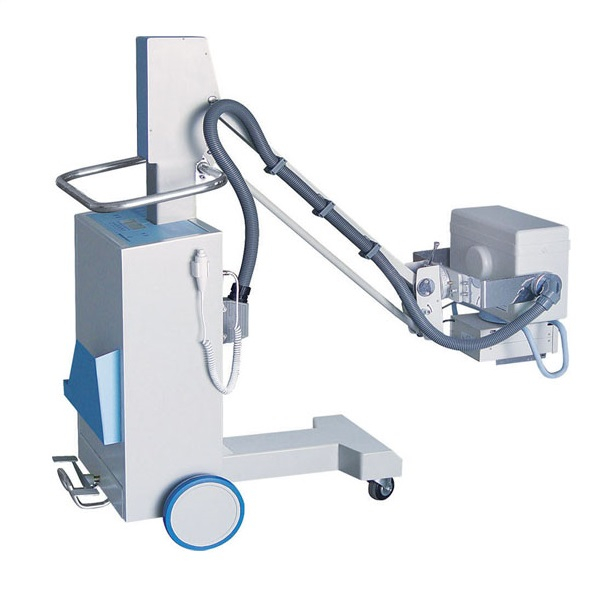

CE/ISO Approved Medical High Frequency Mobile X-ray Equipment (MT01001232)
